Name: Blue Diamond® Extreme Duty Skid Steer Snow Blower
SKU: 832813

Blue Diamond® Extreme Duty Skid Steer Snow Blower

$ 68.44

$ 88.97

Model:

68SNOWBLOWER1116GPM
68SNOWBLOWER1720GPM
68SNOWBLOWER2123GPM
72SNOWBLOWER1720GPM
72SNOWBLOWER2123GPM
72SNOWBLOWER2425GPM
72SNOWBLOWER2629GPM
72SNOWBLOWER3040GPM
84SNOWBLOWER2123GPM
84SNOWBLOWER2425GPM
84SNOWBLOWER2629GPM
84SNOWBLOWER3040GPM

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

The Blue Diamond® Extreme Duty Skid Steer Snow Blower is engineered for years of use.

A high-pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer’s capacity.

FEATURES INCLUDE:

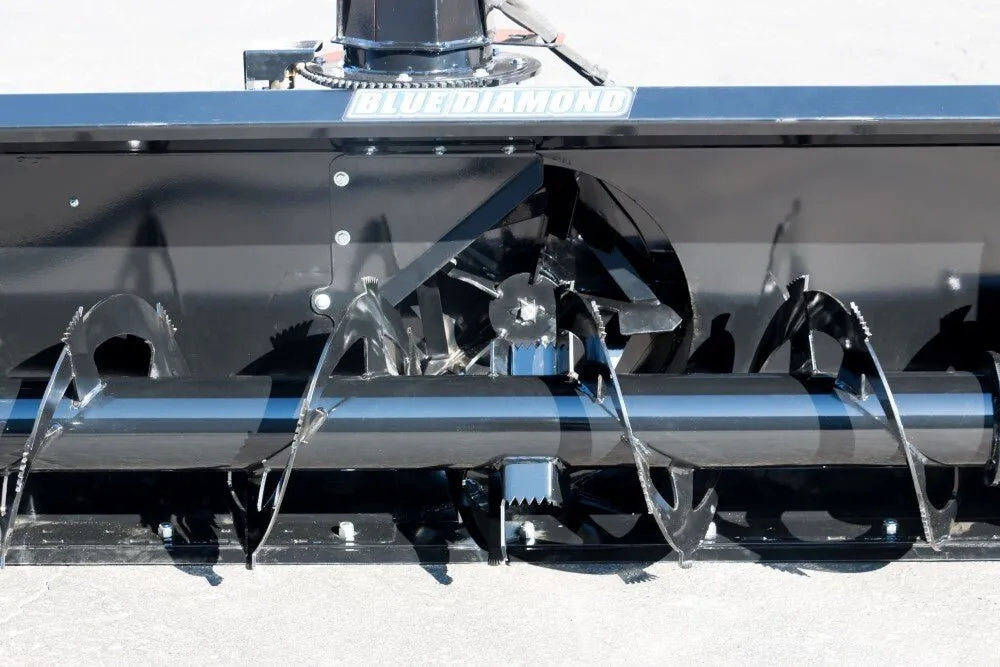

Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
4 blade fan, 22″ diameter, 6 1/2″ deep
No shear pins; high pressure bypass relief system
No chains; direct drive auger and fan
270^◦ hydraulic rotary chute with 7” opening
Hydraulic chute deflector
Adjustable hardened steel skid shoes
7-gauge steel fan housing
10-gauge steel blower shell
1/4″ end plates
High strength corner bracing
Heavy duty polyurethane idler wheels
Bolt-on grader cutting edge

PART NUMBER	MODEL	BEST FLOW	CUT WIDTH	CUT HEIGHT	OVERALL WIDTH	OVERALL HEIGHT	WEIGHT
119098	68″	11-16 GPM	69.7″	29.5″	73.5″	60.5″	915 lbs.
119099	68″	17-20 GPM	69.7″	29.5″	73.5″	60.5″	915 lbs.
119100	68″	21-23 GPM	69.7″	29.5″	73.5″	60.5″	915 lbs.
119103	72″	17-20 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
119104	72″	21-23 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
119105	72″	24-25 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
119106	72″	26-29 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
119107	72″	30-40 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
119109	84″	21-23 GPM	85.7″	29.5″	89.5″	60.5″	1050 lbs.
119110	84″	24-25 GPM	85.7″	29.5″	89.5″	60.5″	1050 lbs.
119111	84"	26-29 GPM	85.7"	29.5"	89.5"	60.5"	1,050 lbs.
119112	84"	30-40 GPM	85.7"	29.5"	89.5"	60.5"	1,050 lbs.
