(Shaft protector and mounting rails sold separately)

Fast changeover, even in the field. Pre-plumbed and pre-tested. Fits 4-bolt engine face plates. Bolts not included; use existing bolts from old pump to install new pump. U.S.A. Max. PSI: 3,500, Shaft Diameter (in.): 20mm, HP: 11 (electric), 15 (gas), Fuel Type: Electric, gas, GPM: 4.5, Application: Pressure washer pump

High Quality Replacement For Worn Out Pumps

• Professional grade pump for belt-driven pressure washers
• Can be rebuilt to save money and extend life of pump

Powerful And Versatile

• Will push 4.5 GPM @ 3500 psi

Convenient connection to most 3/4" gas engine flange

• 20mm solid shaft spins at 1645 rpm
• Bore diameter 16mm (.630"); stroke 18mm (.709")
• Suited for 14-HP engines; no siphon tube barb
• Maximum water temperature of 160 degrees

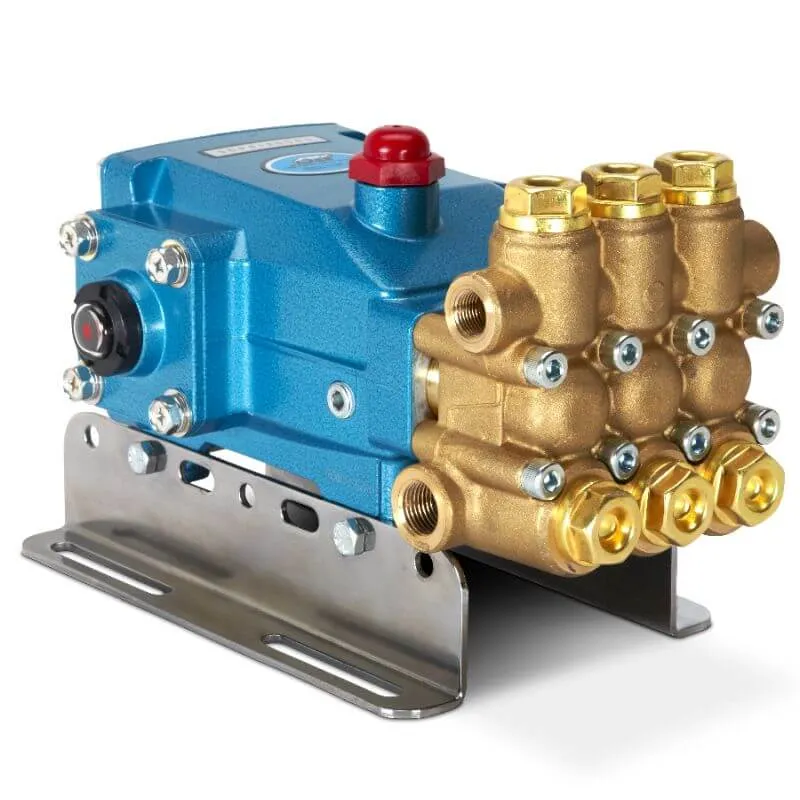

Triplex Plunger Pump

• Belt driven for less wear and extended life
• Ceramic plungers assure even wear and extended seal life
• Triplex plunger design provides smooth liquid flow

Does Not Include Adjustable Pressure Unloader Or Injector

• Pump ships as shown; you will need to reuse your connectors or purchase them separately
• Chemical Injector (ACI005) & unloader kit (302) (sold separately)

Be Sure To Measure Shaft And Flange Bolt Holes Accurately!

• There is a 25% restock fee on returned pumps

Please Call Us For Sizing Assistance w/ Information Below:a

• 1. Age of Pump and Model # (must be no more than 15-yrs old)
• 2. Is the pump Vertical or Horizontal
• 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
• 4. Engine Brand and HP (model # if available would be helpful)
